GO ES56 Stainless General Purpose Zero Differential Normally Open Solenoid Valves
HomeStore

GO ES56 Stainless General Purpose Zero Differential Normally Open Solenoid Valves

GO ES56 Stainless General Purpose Zero Differential Normally Open Solenoid Valves

Select Size
Select Orifice
From $40.41

Original: $115.47

-65%
GO ES56 Stainless General Purpose Zero Differential Normally Open Solenoid Valves—

$115.47

$40.41

The Story

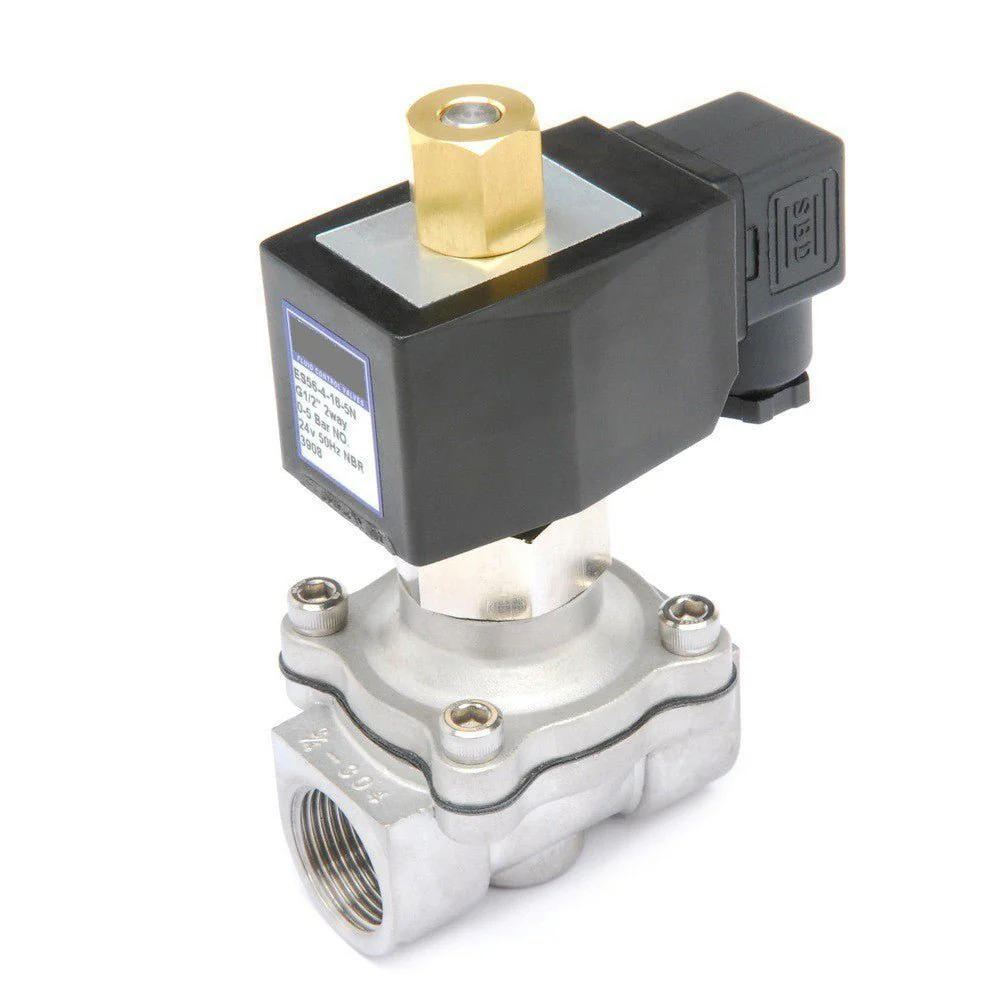

The GO ES56 is a high-flow, normally open (power to close) solenoid valve with a 304 stainless steel forged body and stainless steel operator. It suits low-head and zero-head applications with a coupled diaphragm and comes standard with an NBR seat and seals, handling liquids up to 20 centistoke viscosity.

The range covers 3/8 inch to 1 inch BSP, with a 0 to 7 BAR air pressure range and a 0 to 5 BAR liquid pressure range, from -10°C to 80°C. The standard coil is weatherproof to IP65 and has an LED illuminated plug. Typical applications include tank drain and low-pressure general industry.

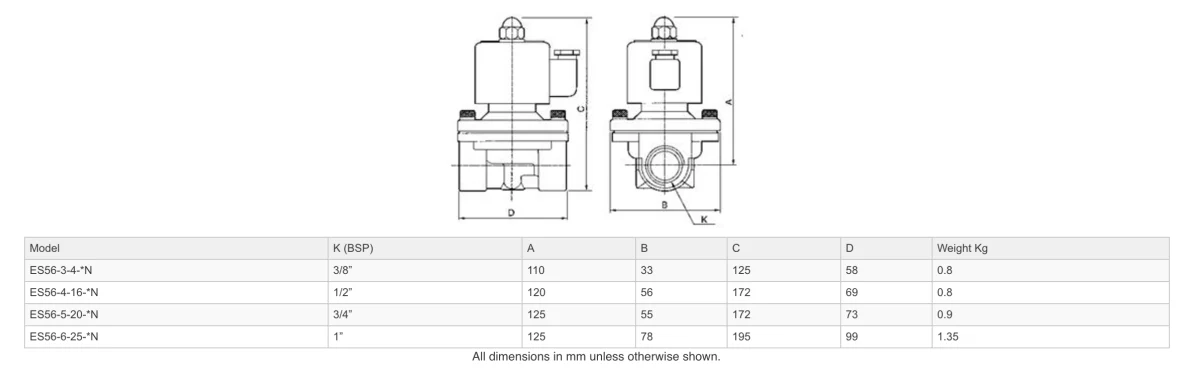

GO ES56 Stainless General Purpose Zero Differential Normally Open Solenoid Valves - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The GO ES56 is a high-flow, normally open (power to close) solenoid valve with a 304 stainless steel forged body and stainless steel operator. It suits low-head and zero-head applications with a coupled diaphragm and comes standard with an NBR seat and seals, handling liquids up to 20 centistoke viscosity.

The range covers 3/8 inch to 1 inch BSP, with a 0 to 7 BAR air pressure range and a 0 to 5 BAR liquid pressure range, from -10°C to 80°C. The standard coil is weatherproof to IP65 and has an LED illuminated plug. Typical applications include tank drain and low-pressure general industry.
