The Story

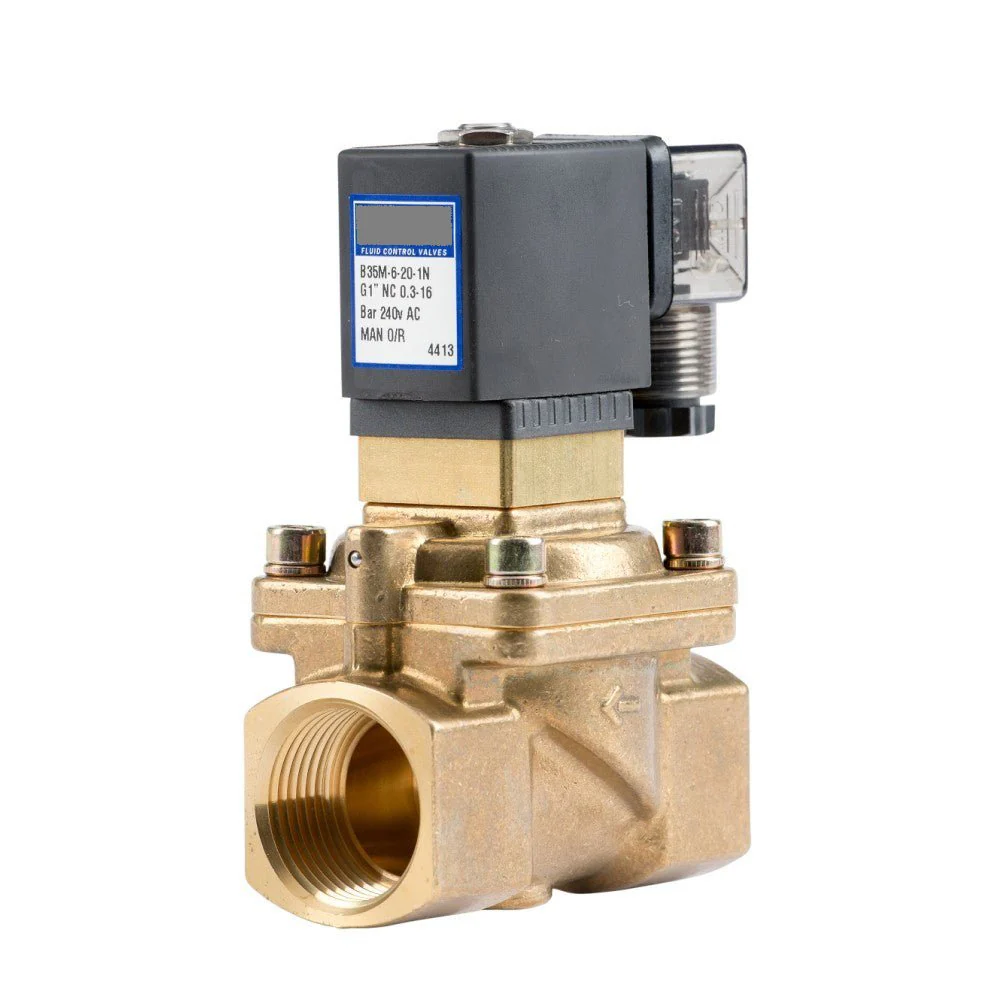

The GO B35M is a brass, 2 way, 2 position normally closed (power to open) differential, servo-assisted solenoid valve with a manual override, for air, water and other non-aggressive media up to 40 centistoke viscosity. An anti water hammer diaphragm gives a slow close, which suits mains water applications or installation downstream of a pump or compressor.

The range covers 1/2 inch to 2 inch BSP with orifice sizes from 14mm to 50mm and a 0.3 to 16 BAR pressure range, from -10°C to 80°C. It comes with a coil (Class H insulation), a DIN plug (IP65 protection) and a manual override function, and is available in all voltages.

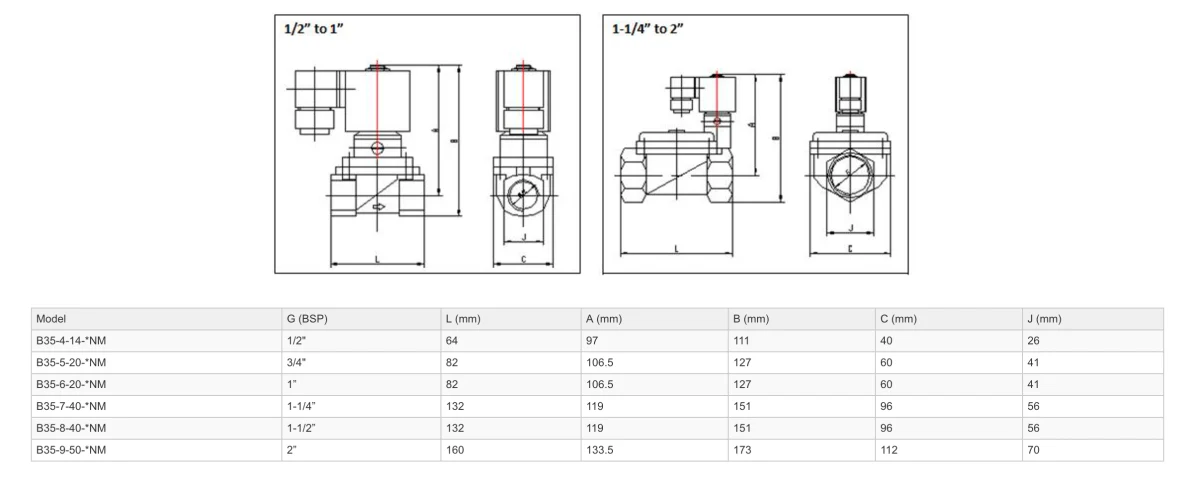

GO B35M Brass General Purpose Differential Manual Override Normally Closed Solenoid Valves - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The GO B35M is a brass, 2 way, 2 position normally closed (power to open) differential, servo-assisted solenoid valve with a manual override, for air, water and other non-aggressive media up to 40 centistoke viscosity. An anti water hammer diaphragm gives a slow close, which suits mains water applications or installation downstream of a pump or compressor.

The range covers 1/2 inch to 2 inch BSP with orifice sizes from 14mm to 50mm and a 0.3 to 16 BAR pressure range, from -10°C to 80°C. It comes with a coil (Class H insulation), a DIN plug (IP65 protection) and a manual override function, and is available in all voltages.
