The GO B35 is a brass, 2 way, 2 position normally closed (power to open) differential, servo-assisted solenoid valve for air, water and other non-aggressive media up to 40 centistoke viscosity. An anti water hammer diaphragm gives a slow close, which suits mains water applications or installation downstream of a pump or compressor.

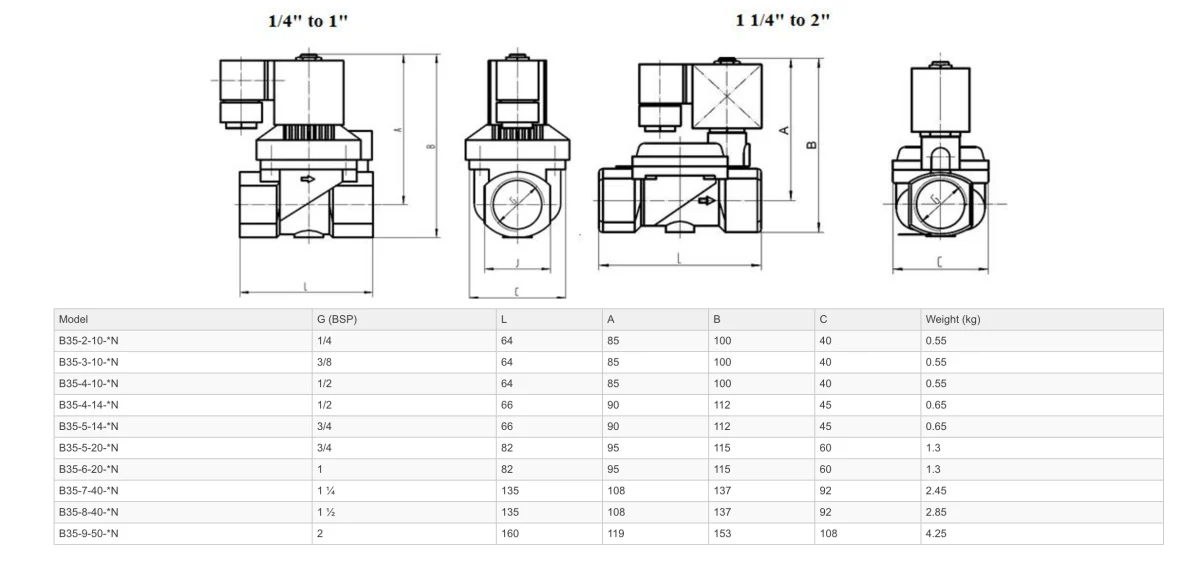

The range covers 1/4 inch to 2 inch BSP with orifice sizes from 10mm to 50mm, a 0.3 to 16 BAR pressure range and a -10°C to 80°C media temperature. It comes with a coil (Class H insulation) and a DIN plug (IP65 protection), is available in all voltages and can be installed in any orientation, though upright is preferable. A matching repair kit is available for the range.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The GO B35 is a brass, 2 way, 2 position normally closed (power to open) differential, servo-assisted solenoid valve for air, water and other non-aggressive media up to 40 centistoke viscosity. An anti water hammer diaphragm gives a slow close, which suits mains water applications or installation downstream of a pump or compressor.
The range covers 1/4 inch to 2 inch BSP with orifice sizes from 10mm to 50mm, a 0.3 to 16 BAR pressure range and a -10°C to 80°C media temperature. It comes with a coil (Class H insulation) and a DIN plug (IP65 protection), is available in all voltages and can be installed in any orientation, though upright is preferable. A matching repair kit is available for the range.
