GO PSM Pressure Switch Brass Body
HomeStore

GO PSM Pressure Switch Brass Body

GO PSM Pressure Switch Brass Body

Select Pressure Range
From $44.58

Original: $127.37

-65%
GO PSM Pressure Switch Brass Body—

$127.37

$44.58

The Story

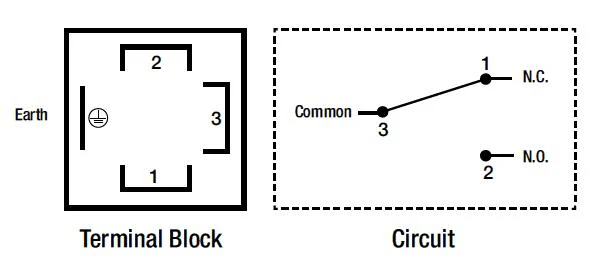

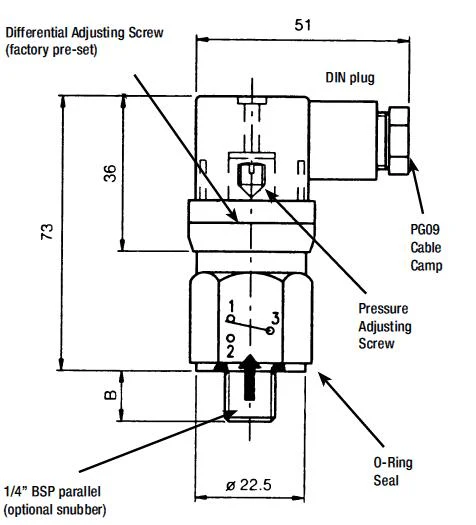

Adjustable pressure switch that is single pole double throw, so it can be wired normally closed or normally open. The electrical connection is by an IP65 DIN plug (PG9), and the port connection is a 1/4" BSP parallel thread with an o-ring gasket. It covers a switching range of 0.2 to 100 BAR across the range, runs on multi voltage (0 to 240v AC/DC), and is rated 6 amp resistive and 2 amp inductive. Factory accredited to CE, ISO 9001 and TUV.

Typical uses include pneumatic, hydraulic, lubrication and general industry.

GO PSM Pressure Switch Brass Body - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

GO PSM Pressure Switch Brass Body - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Adjustable pressure switch that is single pole double throw, so it can be wired normally closed or normally open. The electrical connection is by an IP65 DIN plug (PG9), and the port connection is a 1/4" BSP parallel thread with an o-ring gasket. It covers a switching range of 0.2 to 100 BAR across the range, runs on multi voltage (0 to 240v AC/DC), and is rated 6 amp resistive and 2 amp inductive. Factory accredited to CE, ISO 9001 and TUV.

Typical uses include pneumatic, hydraulic, lubrication and general industry.
