GO CI Body 316 SS Disc EPDM Liner BFDSR Butterfly Valves Actuated Spring Return Pneumatic
HomeStore

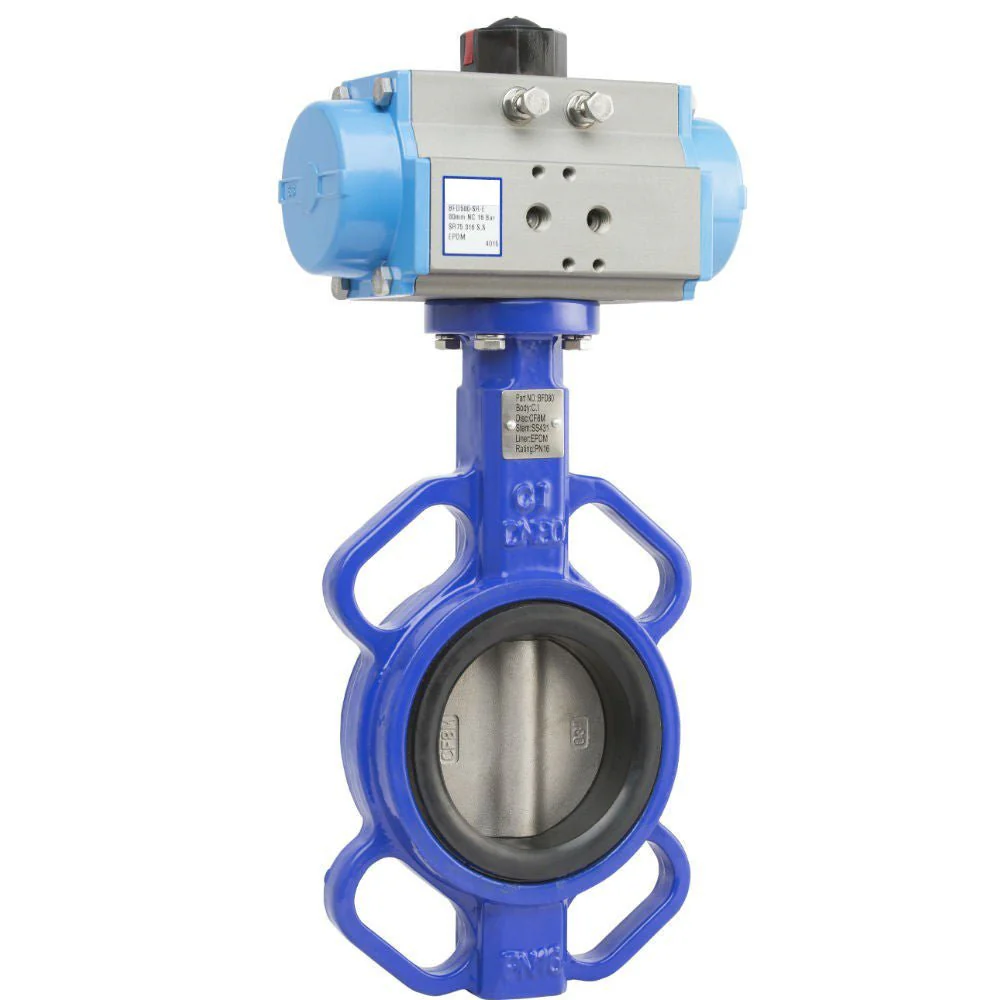

GO CI Body 316 SS Disc EPDM Liner BFDSR Butterfly Valves Actuated Spring Return Pneumatic

GO CI Body 316 SS Disc EPDM Liner BFDSR Butterfly Valves Actuated Spring Return Pneumatic

Select Size
Select Seat
From $64.67

Original: $184.76

-65%
GO CI Body 316 SS Disc EPDM Liner BFDSR Butterfly Valves Actuated Spring Return Pneumatic—

$184.76

$64.67

The Story

The BFD series has a cast iron body, 316 stainless steel disc, EPDM seat and a spring return pneumatic actuator, making it suited to a wide range of industrial applications. These wafer butterfly valves fit all standard flanges and are driven by a high quality spring return (rack and pinion design) anodised aluminium pneumatic actuator, giving a fail safe position should air be lost. The bonded cartridge design gives a longer life span, allows vacuum to be run through the valve and makes the seat replaceable if ever required.

Common applications include water trucks, irrigation, water treatment and other industrial applications. If using on a cement hopper please contact us. We recommend going up a size in actuator to compensate for the weight on the disc. If sizes above 600mm are required please contact us.

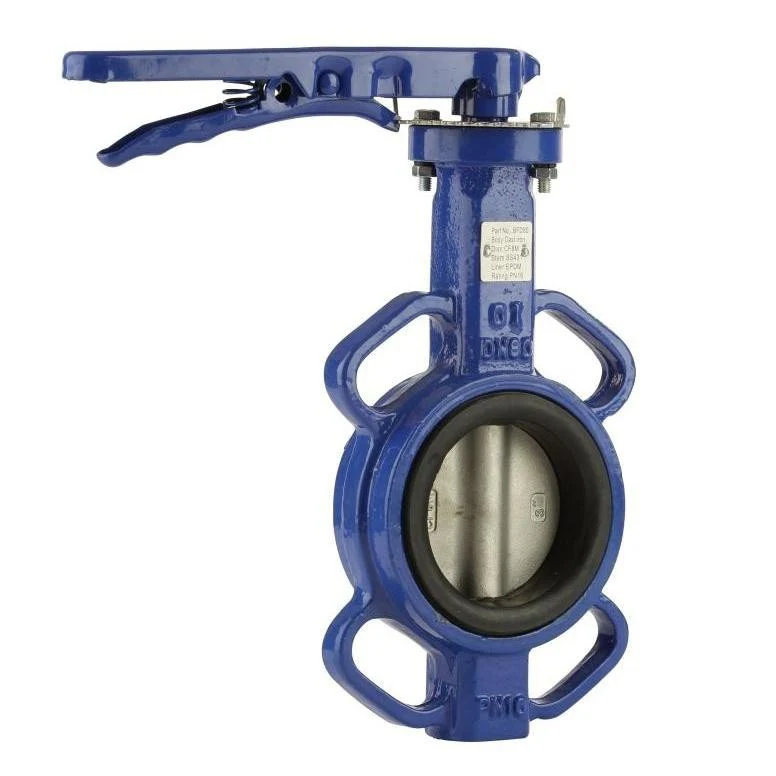

GO CI Body 316 SS Disc EPDM Liner BFDSR Butterfly Valves Actuated Spring Return Pneumatic - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

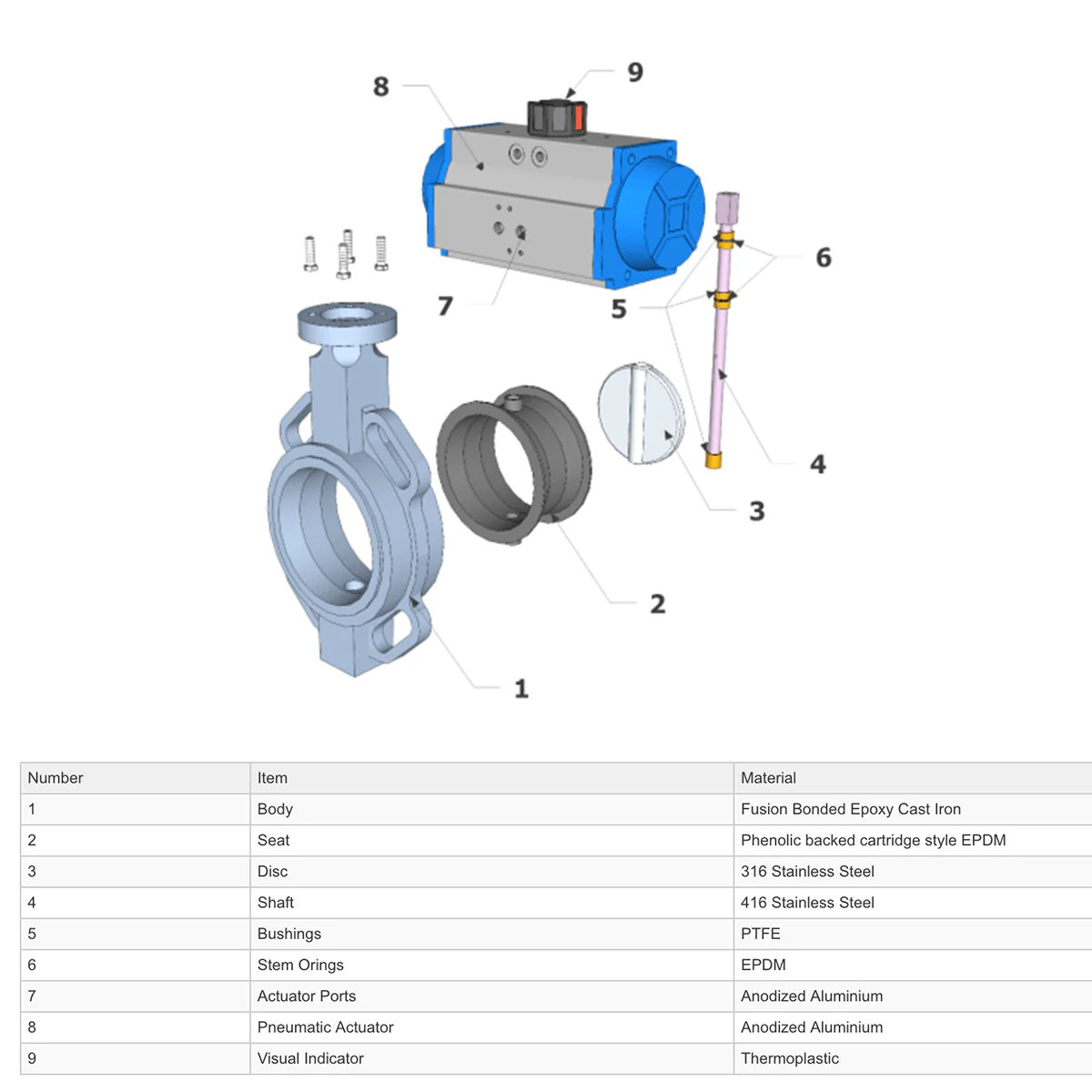

GO CI Body 316 SS Disc EPDM Liner BFDSR Butterfly Valves Actuated Spring Return Pneumatic - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

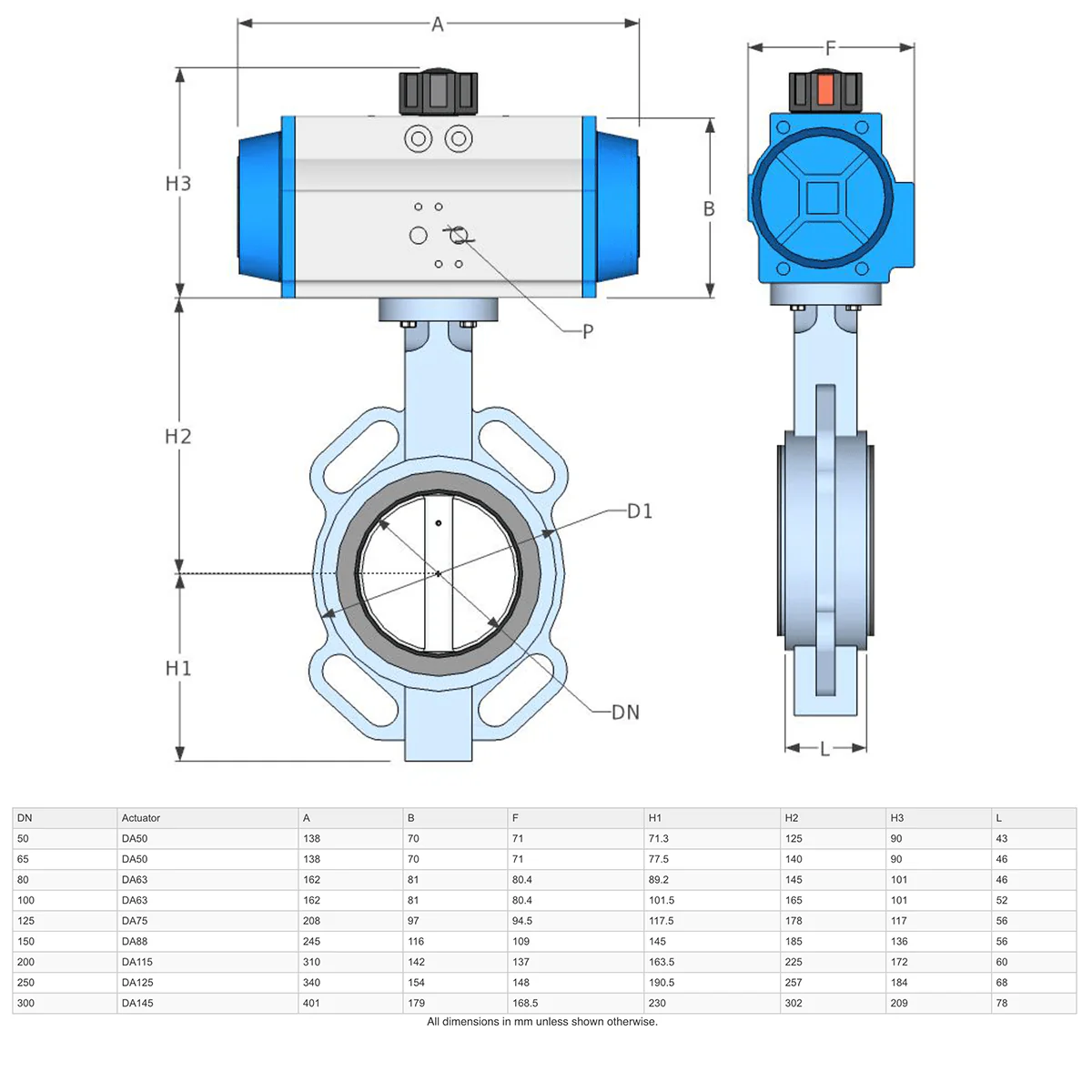

GO CI Body 316 SS Disc EPDM Liner BFDSR Butterfly Valves Actuated Spring Return Pneumatic - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

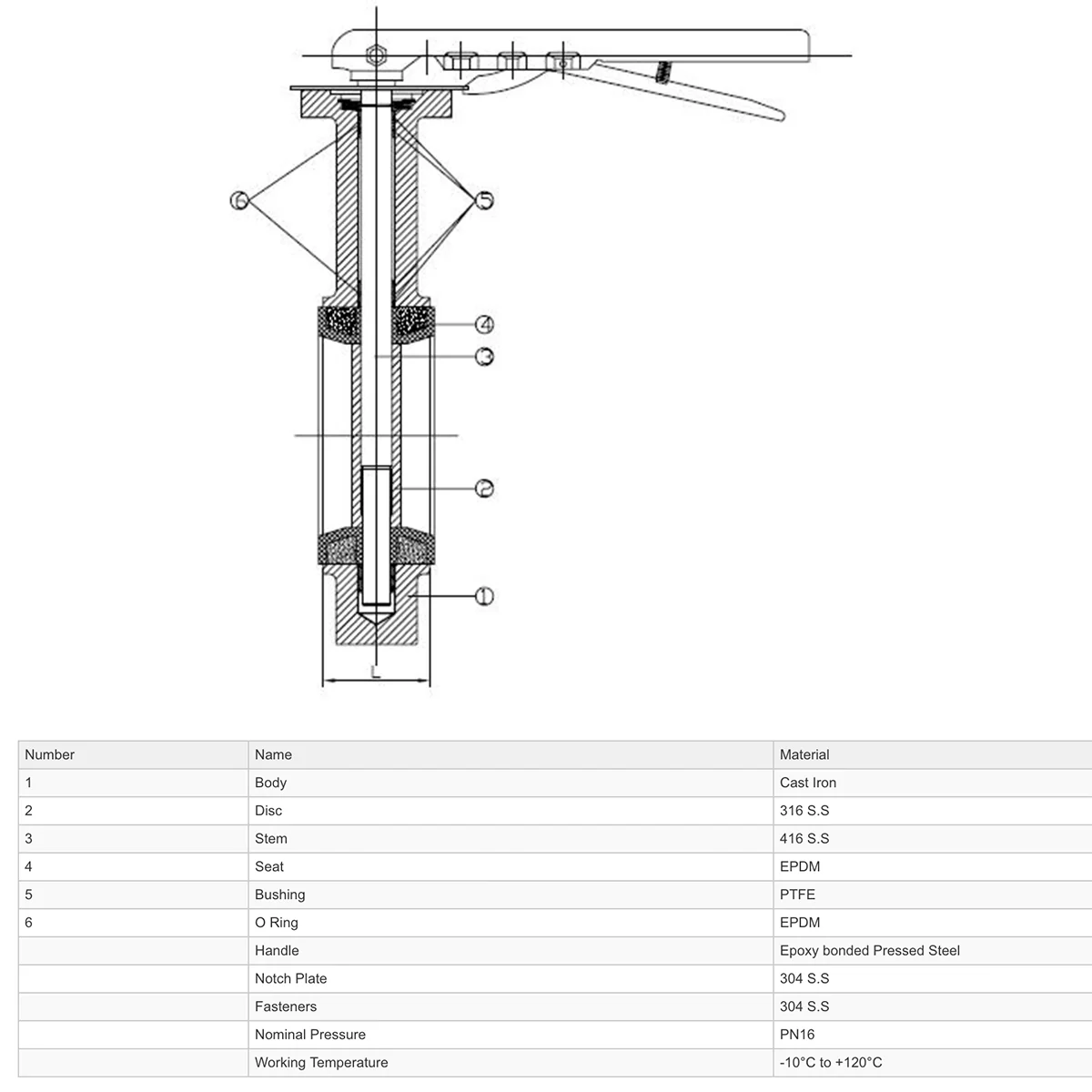

GO CI Body 316 SS Disc EPDM Liner BFDSR Butterfly Valves Actuated Spring Return Pneumatic - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

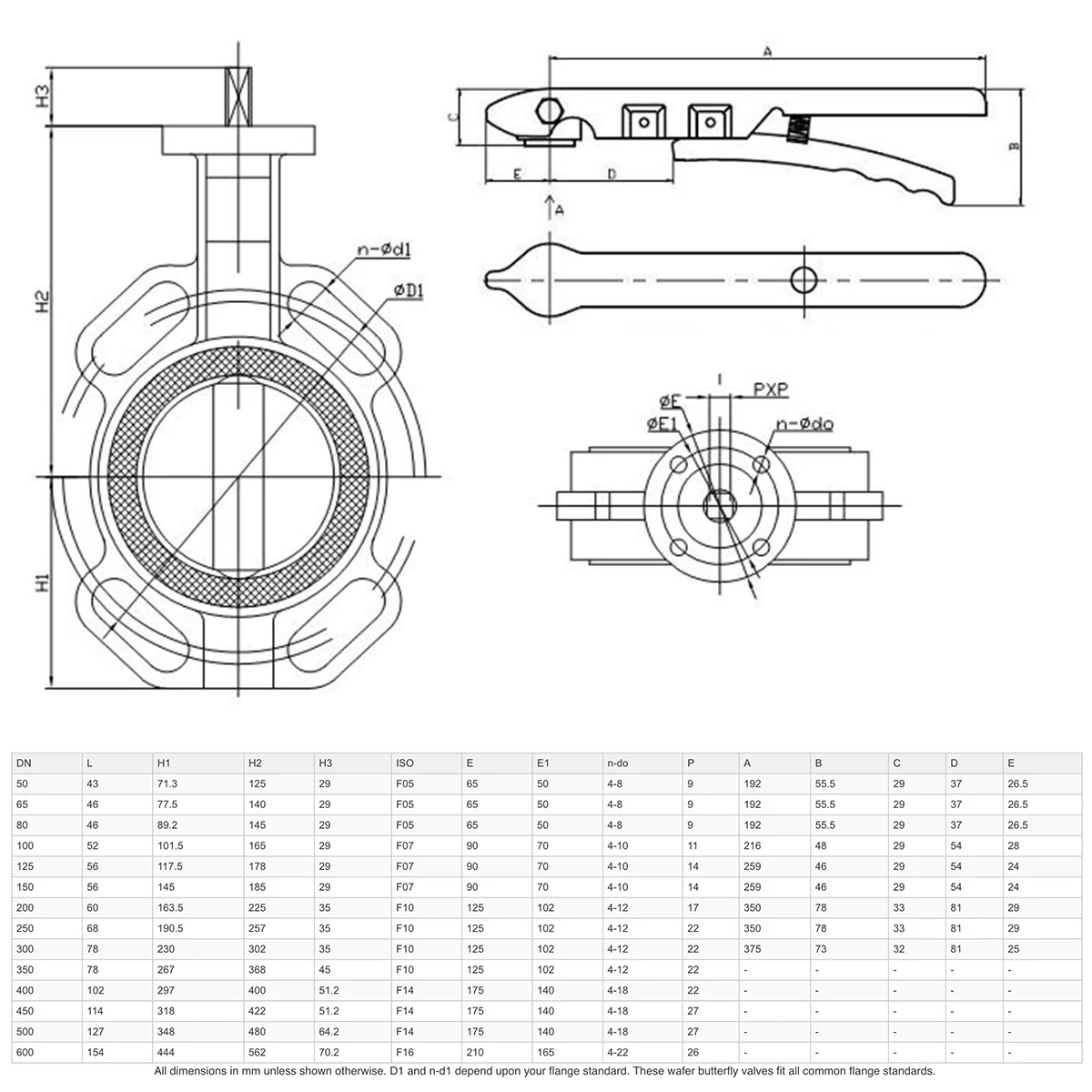

GO CI Body 316 SS Disc EPDM Liner BFDSR Butterfly Valves Actuated Spring Return Pneumatic - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The BFD series has a cast iron body, 316 stainless steel disc, EPDM seat and a spring return pneumatic actuator, making it suited to a wide range of industrial applications. These wafer butterfly valves fit all standard flanges and are driven by a high quality spring return (rack and pinion design) anodised aluminium pneumatic actuator, giving a fail safe position should air be lost. The bonded cartridge design gives a longer life span, allows vacuum to be run through the valve and makes the seat replaceable if ever required.

Common applications include water trucks, irrigation, water treatment and other industrial applications. If using on a cement hopper please contact us. We recommend going up a size in actuator to compensate for the weight on the disc. If sizes above 600mm are required please contact us.
