GO CI Body 316 SS Disc EPDM Liner BFLE Butterfly Valves Actuated Electric Lugged
HomeStore

GO CI Body 316 SS Disc EPDM Liner BFLE Butterfly Valves Actuated Electric Lugged

GO CI Body 316 SS Disc EPDM Liner BFLE Butterfly Valves Actuated Electric Lugged

Select Size
Select Seat
Select Flange
From $148.19

Original: $423.40

-65%
GO CI Body 316 SS Disc EPDM Liner BFLE Butterfly Valves Actuated Electric Lugged—

$423.40

$148.19

The Story

The BFL series of lugged butterfly valves (table E standard) has a cast iron body, 316 stainless steel disc and an EPDM seat, making it suited to a wide range of general water and industrial applications. It is driven by a high quality IP67 electric actuator, supplied as standard with a visual indicator, manual override and extra limit switches, and available in all voltages. The bonded cartridge design gives a longer life span, allows vacuum to be run through the valve and makes the seat replaceable if ever required.

Common applications include water trucks, irrigation, cement hoppers and other industrial applications. If sizes above 300mm, different flange standards or different seat materials are required please contact us.

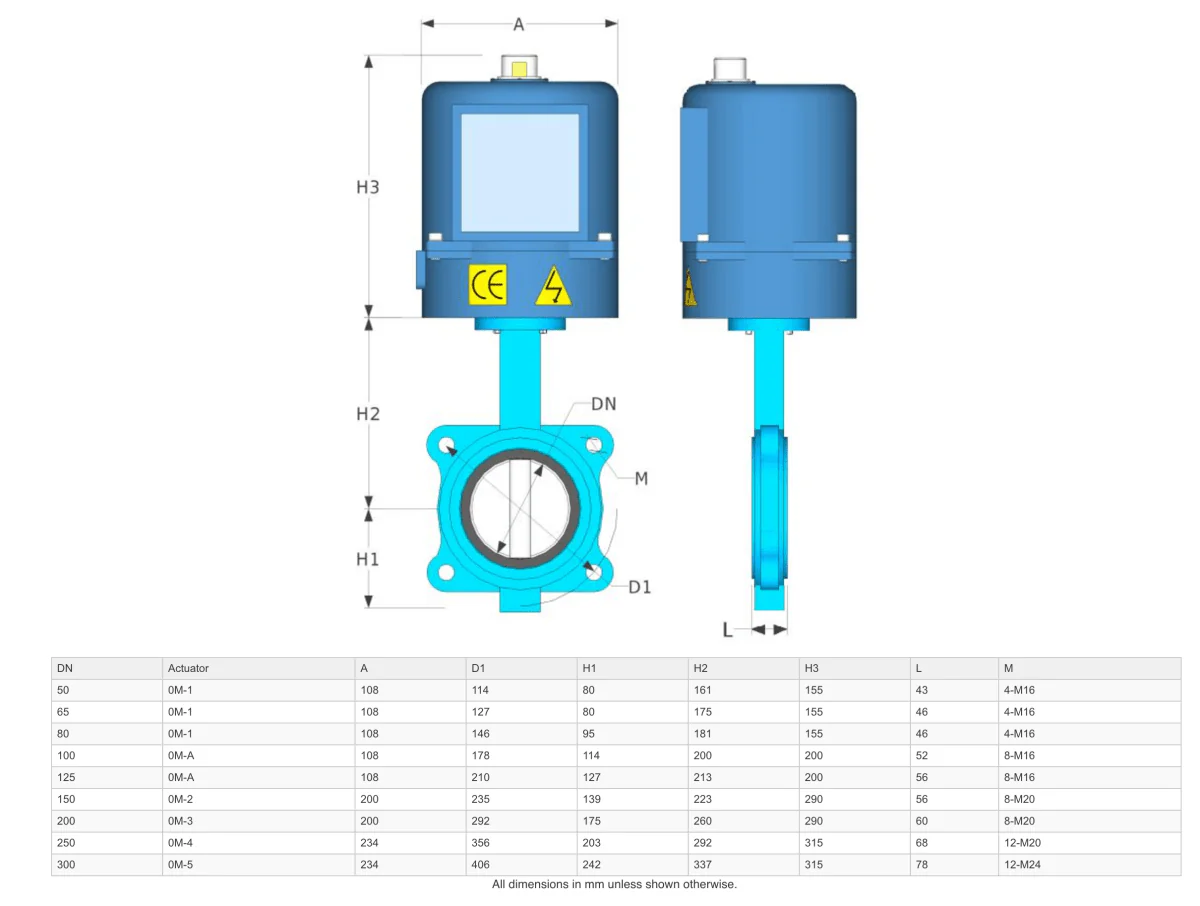

GO CI Body 316 SS Disc EPDM Liner BFLE Butterfly Valves Actuated Electric Lugged - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The BFL series of lugged butterfly valves (table E standard) has a cast iron body, 316 stainless steel disc and an EPDM seat, making it suited to a wide range of general water and industrial applications. It is driven by a high quality IP67 electric actuator, supplied as standard with a visual indicator, manual override and extra limit switches, and available in all voltages. The bonded cartridge design gives a longer life span, allows vacuum to be run through the valve and makes the seat replaceable if ever required.

Common applications include water trucks, irrigation, cement hoppers and other industrial applications. If sizes above 300mm, different flange standards or different seat materials are required please contact us.
