Name: GO CI Body 316 SS Disc EPDM Liner BFDDA Butterfly Valves Actuated Double Acting Pneumatic
Brand: GO Industrial
SKU: go-butterfly-valve-actuated-double-acting-pneumatic-ci-body-316-ss-disc-epdm-liner-2-to-24-bfdda-range
Availability: InStock

✨ New Arrivals Just Dropped!Explore

Home Store

GO CI Body 316 SS Disc EPDM Liner BFDDA Butterfly Valves Actuated Double Acting Pneumatic

Select Size

Select Seat

From $53.89

Original: $153.96

-65%

GO CI Body 316 SS Disc EPDM Liner BFDDA Butterfly Valves Actuated Double Acting Pneumatic—

$153.96

$53.89

Select Size

Select Seat

From $53.89

Original: $153.96

-65%

GO CI Body 316 SS Disc EPDM Liner BFDDA Butterfly Valves Actuated Double Acting Pneumatic—

$153.96

$53.89

The Story

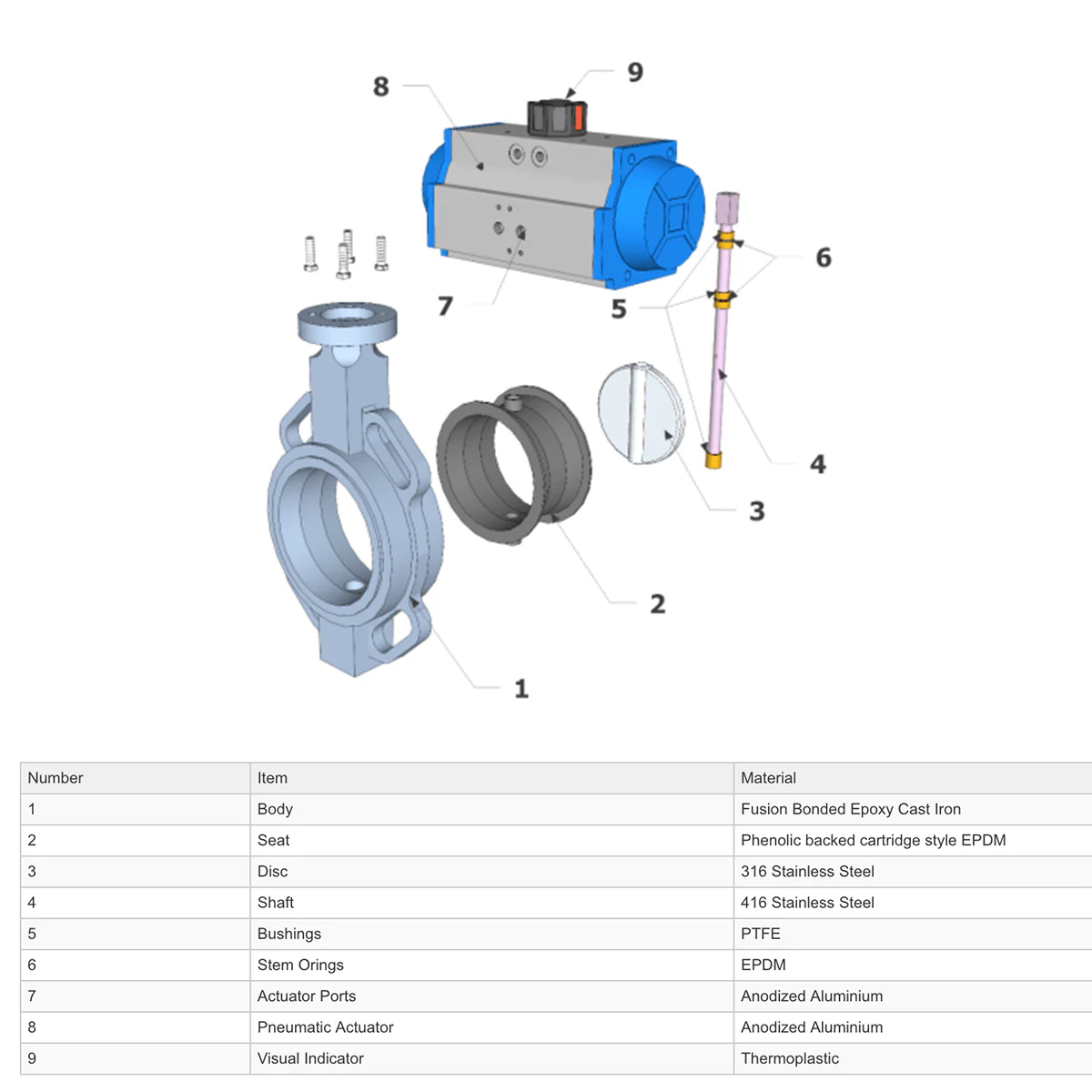

The BFD series has a cast iron body, 316 stainless steel disc, EPDM seat and a double acting pneumatic actuator, making it suited to a wide range of industrial applications. These wafer butterfly valves fit all standard flanges and are driven by a high quality double acting (rack and pinion design) anodised aluminium pneumatic actuator. The bonded cartridge design gives a longer life span, allows vacuum to be run through the valve and makes the seat replaceable if ever required. Designed and manufactured in accordance with API609, and inspected and tested in accordance with API598.

Common applications include water trucks, irrigation and other industrial applications. If sizes above 600mm or extension shafts are required please contact us.
