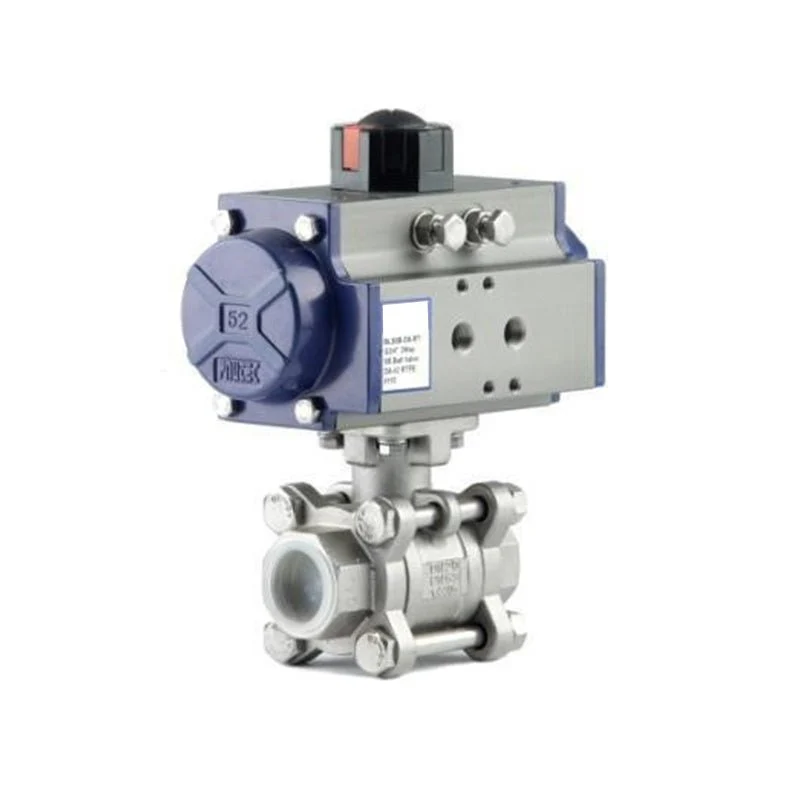

GO Ball Valves V Port Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLVDA

GO Ball Valves V Port Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLVDA

Select Size
From $55.36

Original: $158.16

-65%
GO Ball Valves V Port Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLVDA—

$158.16

$55.36

The Story

High performance 3 piece full bore 316 stainless steel V port ball valve with BSP threaded connections and a double acting pneumatic actuator. A self adjusting stem packing assembly with Belleville spring copes with temperature fluctuations and vibration, while a pre drilled metric hole on the ISO5211 direct mounting pad minimises thermal transfer from valve to actuator. Reinforced PTFE seats handle temperatures up to 180°C. The anodised aluminium double acting pneumatic actuator drives the valve open and closed.

Typical applications include water treatment, chemical, marine, petrochemical and general industry.

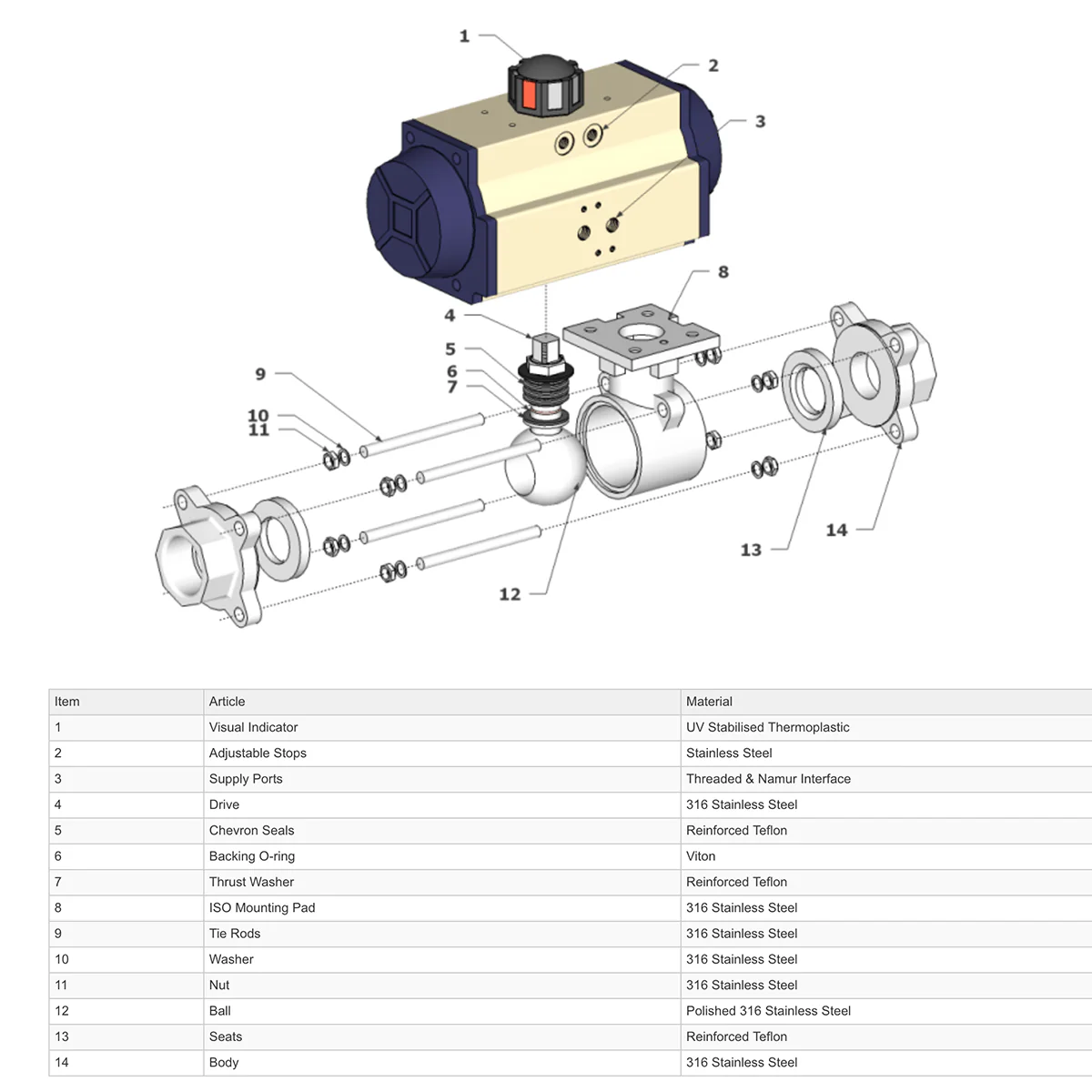

GO Ball Valves V Port Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLVDA - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

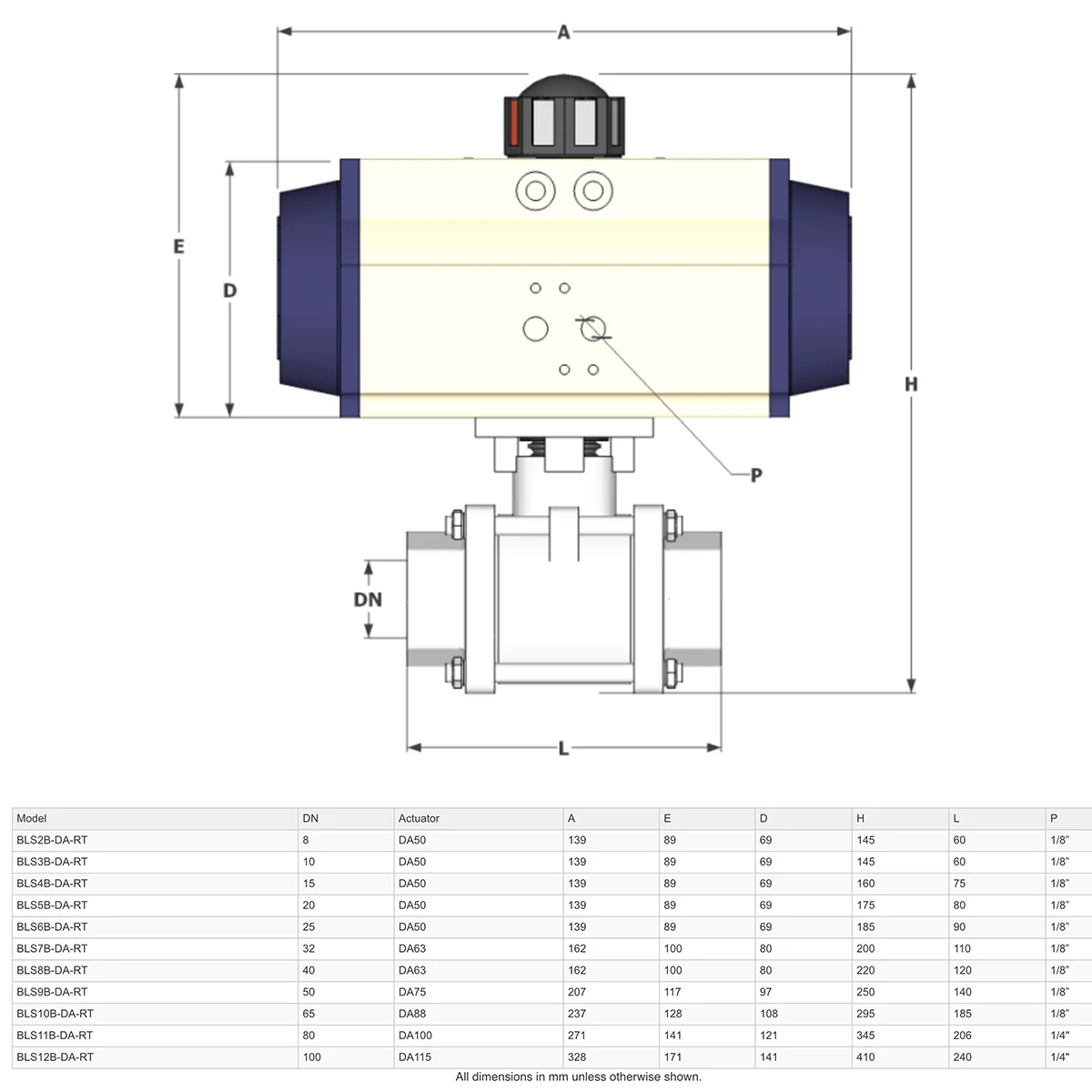

GO Ball Valves V Port Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLVDA - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

High performance 3 piece full bore 316 stainless steel V port ball valve with BSP threaded connections and a double acting pneumatic actuator. A self adjusting stem packing assembly with Belleville spring copes with temperature fluctuations and vibration, while a pre drilled metric hole on the ISO5211 direct mounting pad minimises thermal transfer from valve to actuator. Reinforced PTFE seats handle temperatures up to 180°C. The anodised aluminium double acting pneumatic actuator drives the valve open and closed.

Typical applications include water treatment, chemical, marine, petrochemical and general industry.
