GO Ball Valves Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way BLS3FASR
HomeStore

GO Ball Valves Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way BLS3FASR

GO Ball Valves Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way BLS3FASR

Select Size
Select Body Material
From $107.78

Original: $307.93

-65%
GO Ball Valves Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way BLS3FASR—

$307.93

$107.78

The Story

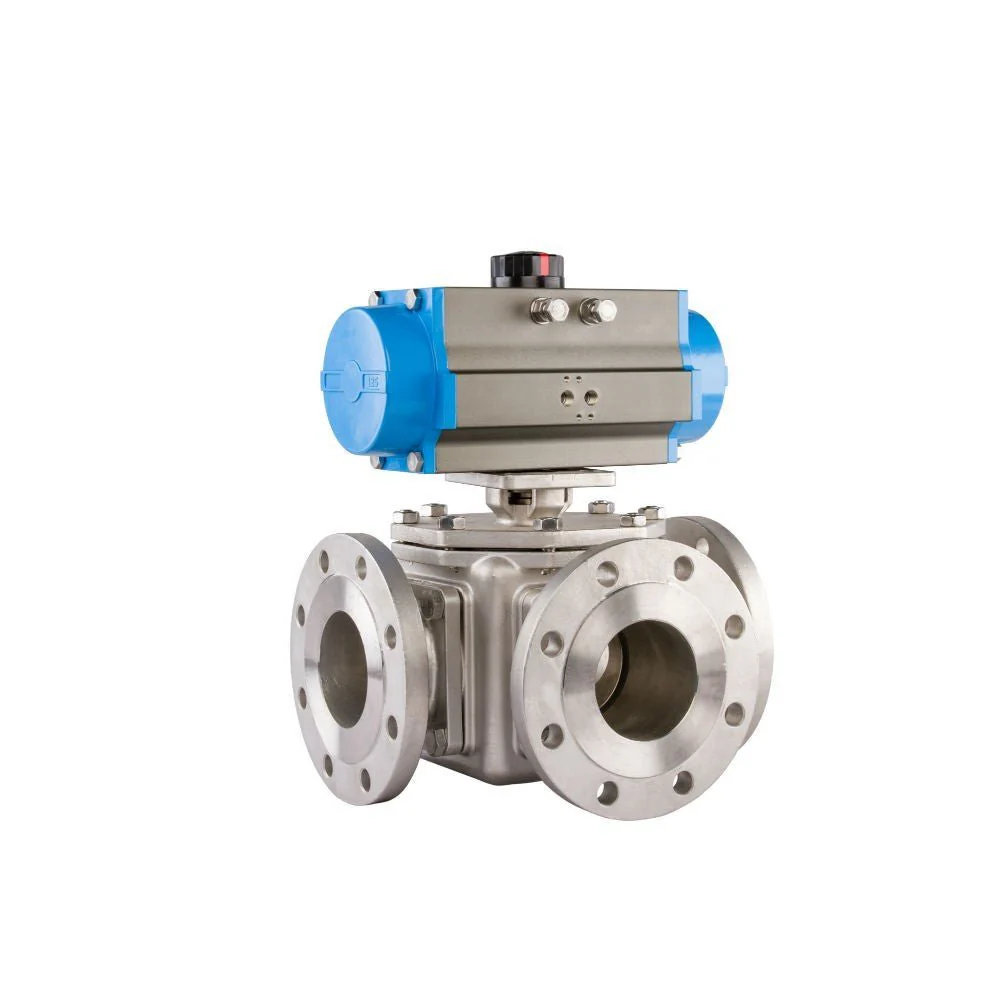

A high performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and a spring return pneumatic actuator. It has a self adjusting stem packing assembly with a Belleville spring for temperature fluctuations and vibration, and a pre drilled metric ISO5211 direct mounting pad to minimise thermal transfer from valve to actuator. Reinforced PTFE seats allow temperatures up to 180°C. The anodised aluminium rack and pinion actuator has a visual indicator, namur interface and stop adjustments. Typical applications include water treatment, chemical, marine, petrochemical and general industry.

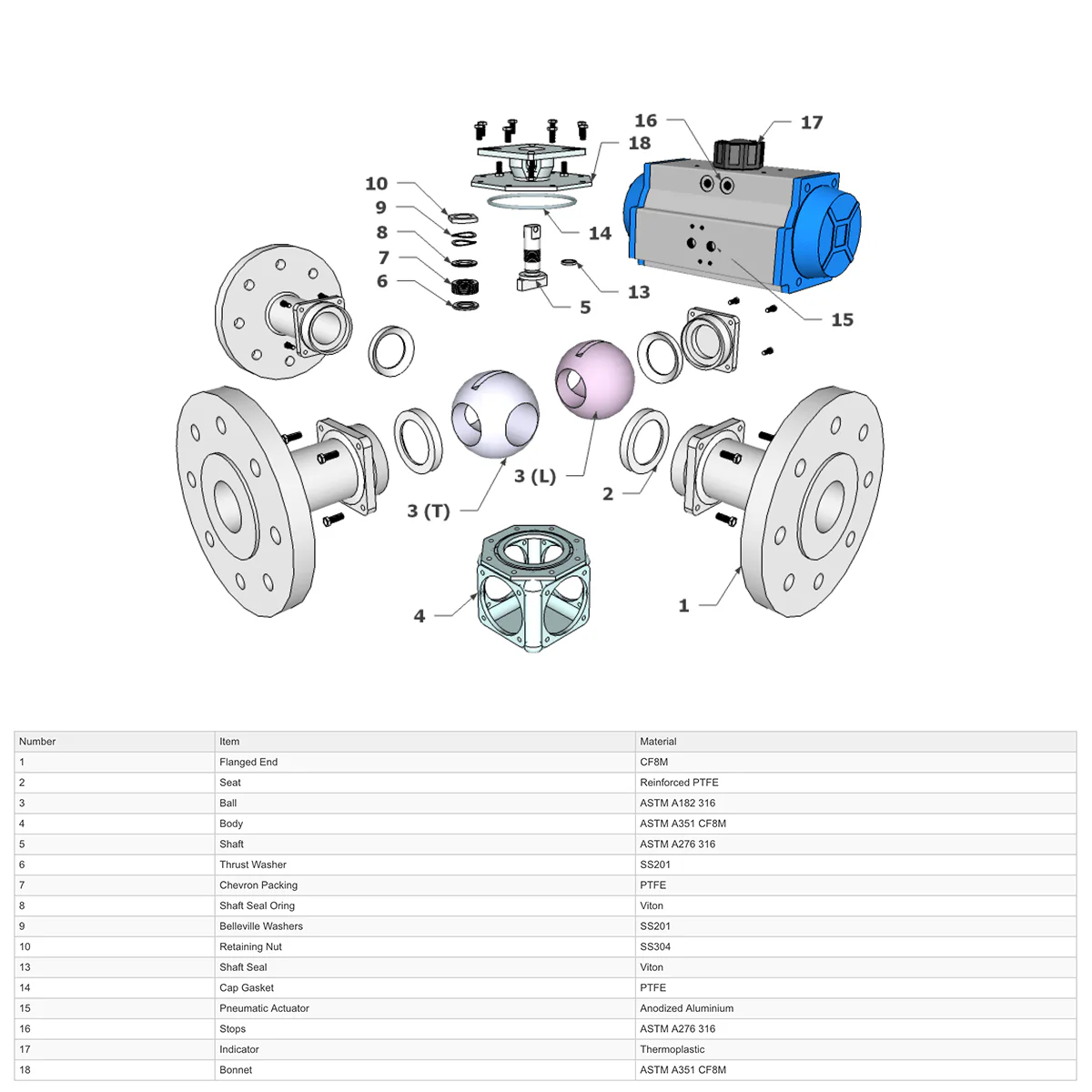

GO Ball Valves Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way BLS3FASR - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

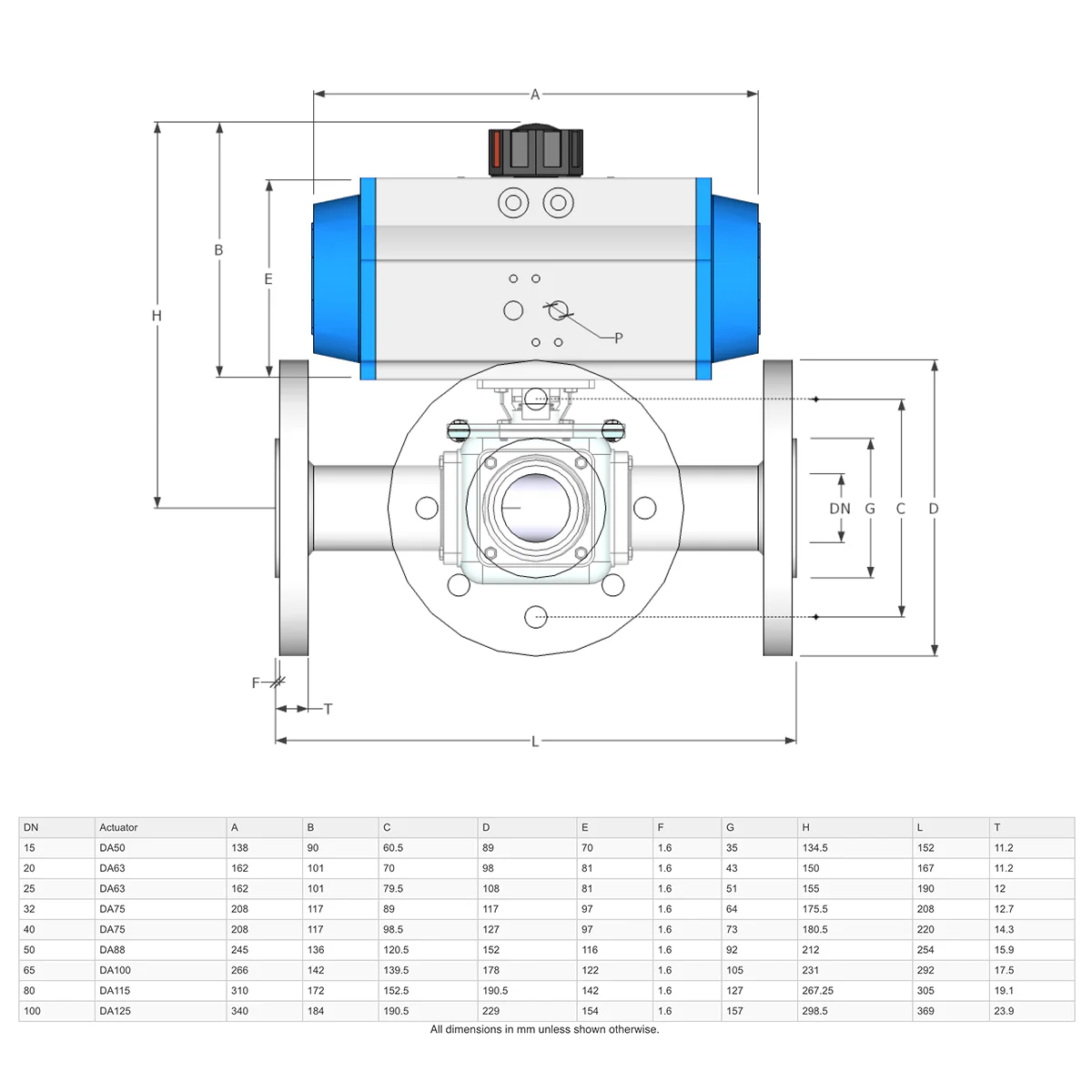

GO Ball Valves Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way BLS3FASR - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

A high performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and a spring return pneumatic actuator. It has a self adjusting stem packing assembly with a Belleville spring for temperature fluctuations and vibration, and a pre drilled metric ISO5211 direct mounting pad to minimise thermal transfer from valve to actuator. Reinforced PTFE seats allow temperatures up to 180°C. The anodised aluminium rack and pinion actuator has a visual indicator, namur interface and stop adjustments. Typical applications include water treatment, chemical, marine, petrochemical and general industry.
