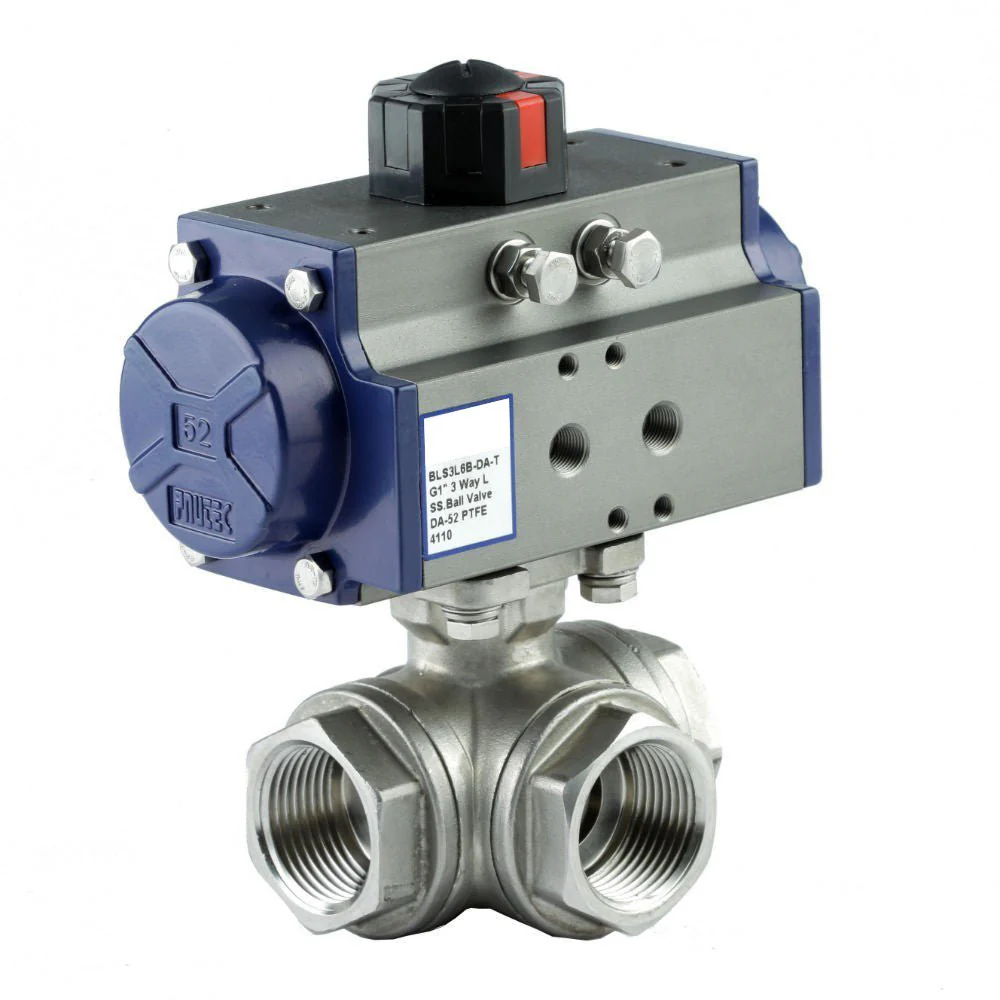

GO Ball Valves Actuated Spring Return Pneumatic 316 Stainless 3 Way BLS3SR
HomeStore

GO Ball Valves Actuated Spring Return Pneumatic 316 Stainless 3 Way BLS3SR

GO Ball Valves Actuated Spring Return Pneumatic 316 Stainless 3 Way BLS3SR

Select Size
From $53.89

Original: $153.96

-65%
GO Ball Valves Actuated Spring Return Pneumatic 316 Stainless 3 Way BLS3SR—

$153.96

$53.89

The Story

A high performance 3 way (L and T port) reduced bore 316 Stainless Steel ball valve with BSP threaded connections and a spring return pneumatic actuator. It has a self adjusting stem packing assembly with a Belleville spring for temperature fluctuations and vibration, and a long neck to minimise thermal transfer from valve to actuator. Reinforced PTFE seats allow temperatures up to 180°C. The spring in the actuator allows the valve to return to a rest position in the case of loss of air. Typical applications include water treatment, chemical, marine, petrochemical and general industry.

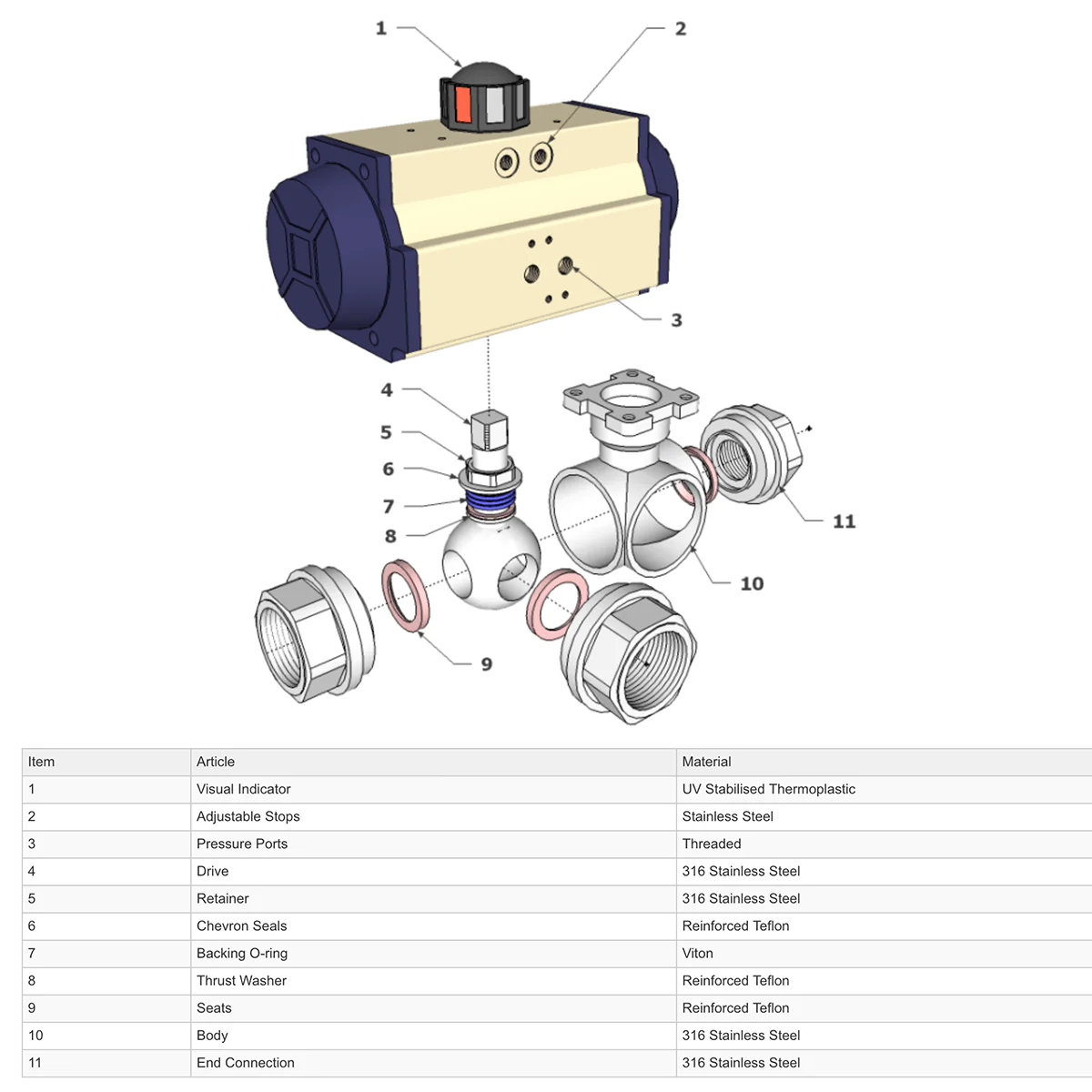

GO Ball Valves Actuated Spring Return Pneumatic 316 Stainless 3 Way BLS3SR - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

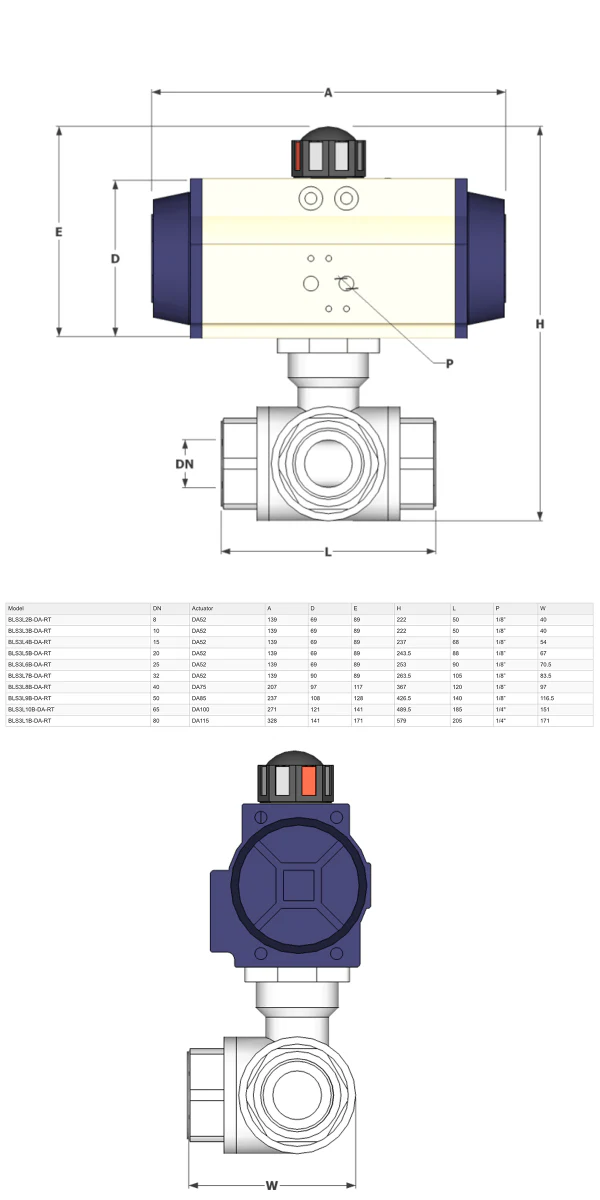

GO Ball Valves Actuated Spring Return Pneumatic 316 Stainless 3 Way BLS3SR - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

A high performance 3 way (L and T port) reduced bore 316 Stainless Steel ball valve with BSP threaded connections and a spring return pneumatic actuator. It has a self adjusting stem packing assembly with a Belleville spring for temperature fluctuations and vibration, and a long neck to minimise thermal transfer from valve to actuator. Reinforced PTFE seats allow temperatures up to 180°C. The spring in the actuator allows the valve to return to a rest position in the case of loss of air. Typical applications include water treatment, chemical, marine, petrochemical and general industry.
