Original: $431.10
-65%$431.10
$150.88The Story

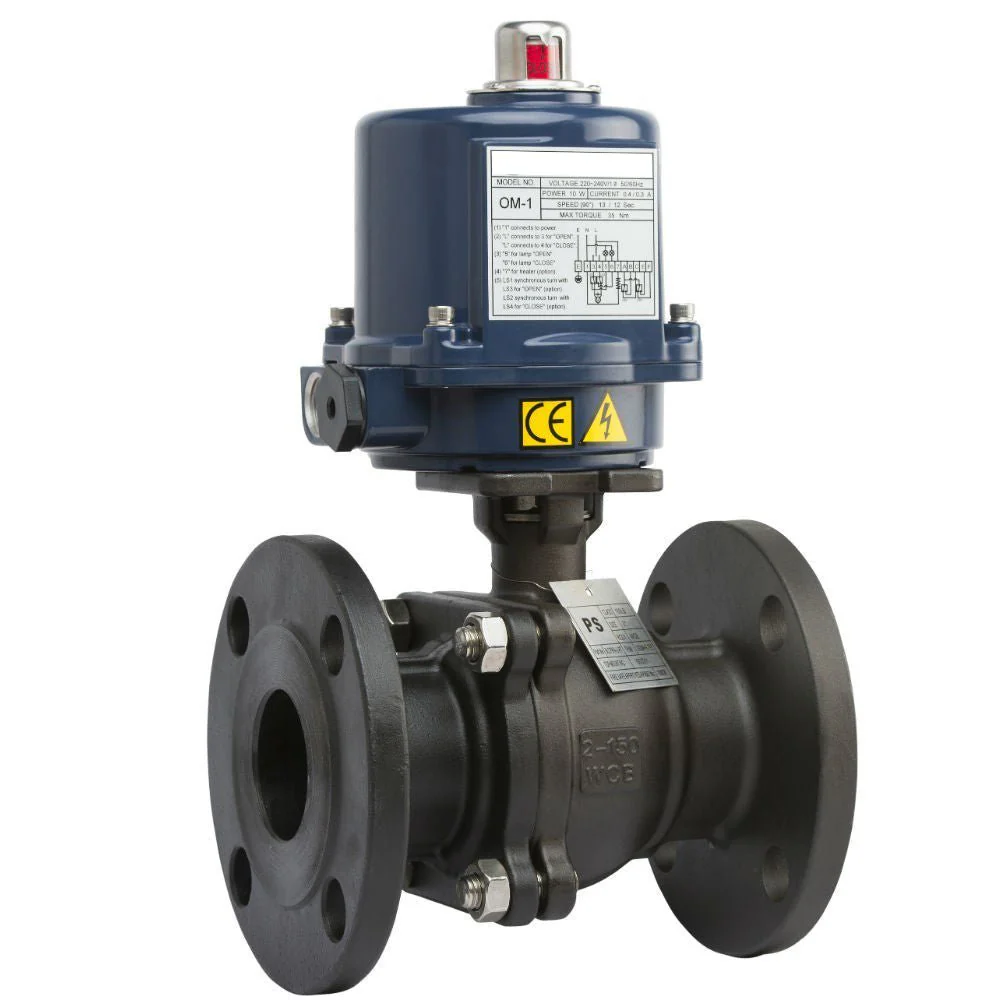

A two piece two way ANSI 150 flanged fire safe approved ball valve with electric operation. It has a 316 Stainless Steel or Cast Steel body, Graphite Filled PTFE seats, an FKM backing ring, live loaded packing and an anti static device. The ball valve is designed and manufactured to ANSI B16.34, the face to face complies with ANSI B16.10, the flange ends comply with ANSI B16.5 and testing and inspection is according to API598. It is fire safe approved to API607 Sixth Edition, Cert. No 218781. The direct coupled IP67 electric actuator has a visual indicator and extra limit switches, and handles media from -20°C to 180°C. The BLSFE models feature a 316 Stainless Steel body while the BLCFE models feature a Cast Steel body. Please note the 125mm model is not fire safe approved.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
A two piece two way ANSI 150 flanged fire safe approved ball valve with electric operation. It has a 316 Stainless Steel or Cast Steel body, Graphite Filled PTFE seats, an FKM backing ring, live loaded packing and an anti static device. The ball valve is designed and manufactured to ANSI B16.34, the face to face complies with ANSI B16.10, the flange ends comply with ANSI B16.5 and testing and inspection is according to API598. It is fire safe approved to API607 Sixth Edition, Cert. No 218781. The direct coupled IP67 electric actuator has a visual indicator and extra limit switches, and handles media from -20°C to 180°C. The BLSFE models feature a 316 Stainless Steel body while the BLCFE models feature a Cast Steel body. Please note the 125mm model is not fire safe approved.
