GO Ball Valves Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLSDA
HomeStore

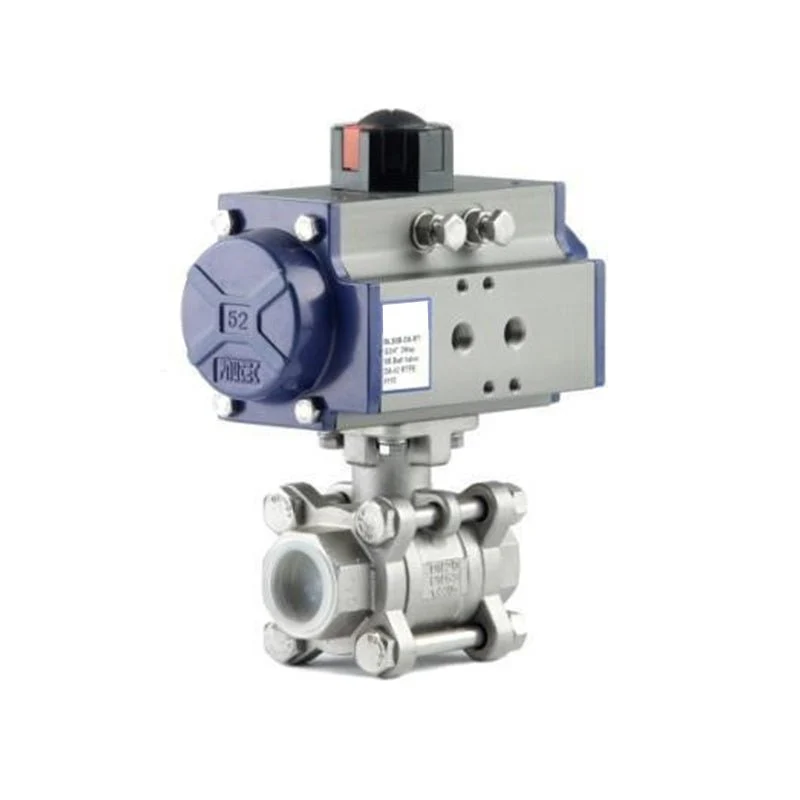

GO Ball Valves Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLSDA

GO Ball Valves Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLSDA

Select Size
From $47.27

Original: $135.07

-65%
GO Ball Valves Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLSDA—

$135.07

$47.27

The Story

A high performance 3 piece full bore 316 Stainless Steel ball valve with BSP threaded connections and a double acting pneumatic actuator. It has a self adjusting stem packing assembly with a Belleville spring for temperature fluctuations and vibration, and a pre drilled metric hole on the ISO5211 direct mounting pad to minimise thermal transfer from valve to actuator. Reinforced PTFE seats allow temperatures up to 180°C. The anodised aluminium actuator provides double acting operation. Typical applications include water treatment, chemical, marine, petrochemical and general industry.

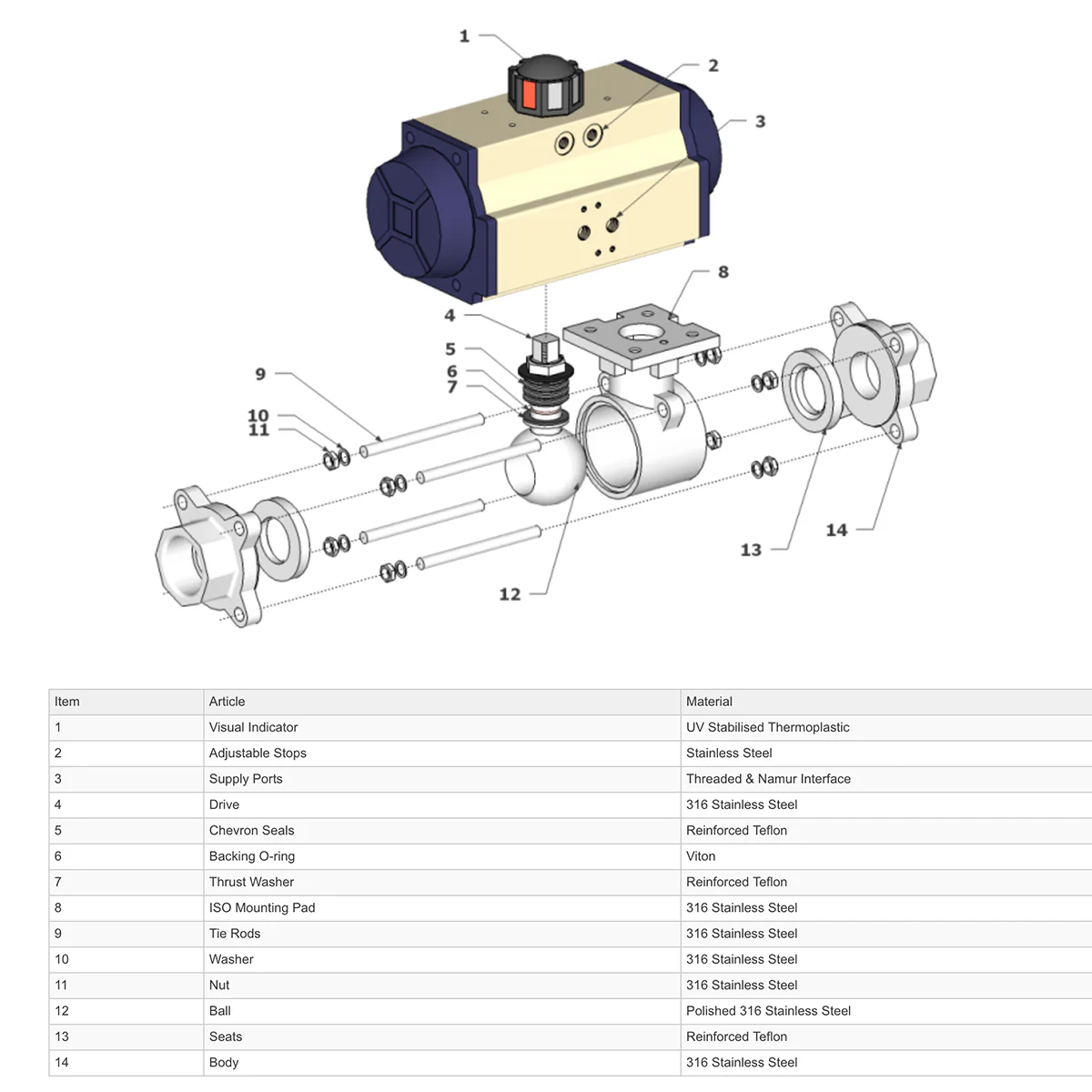

GO Ball Valves Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLSDA - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

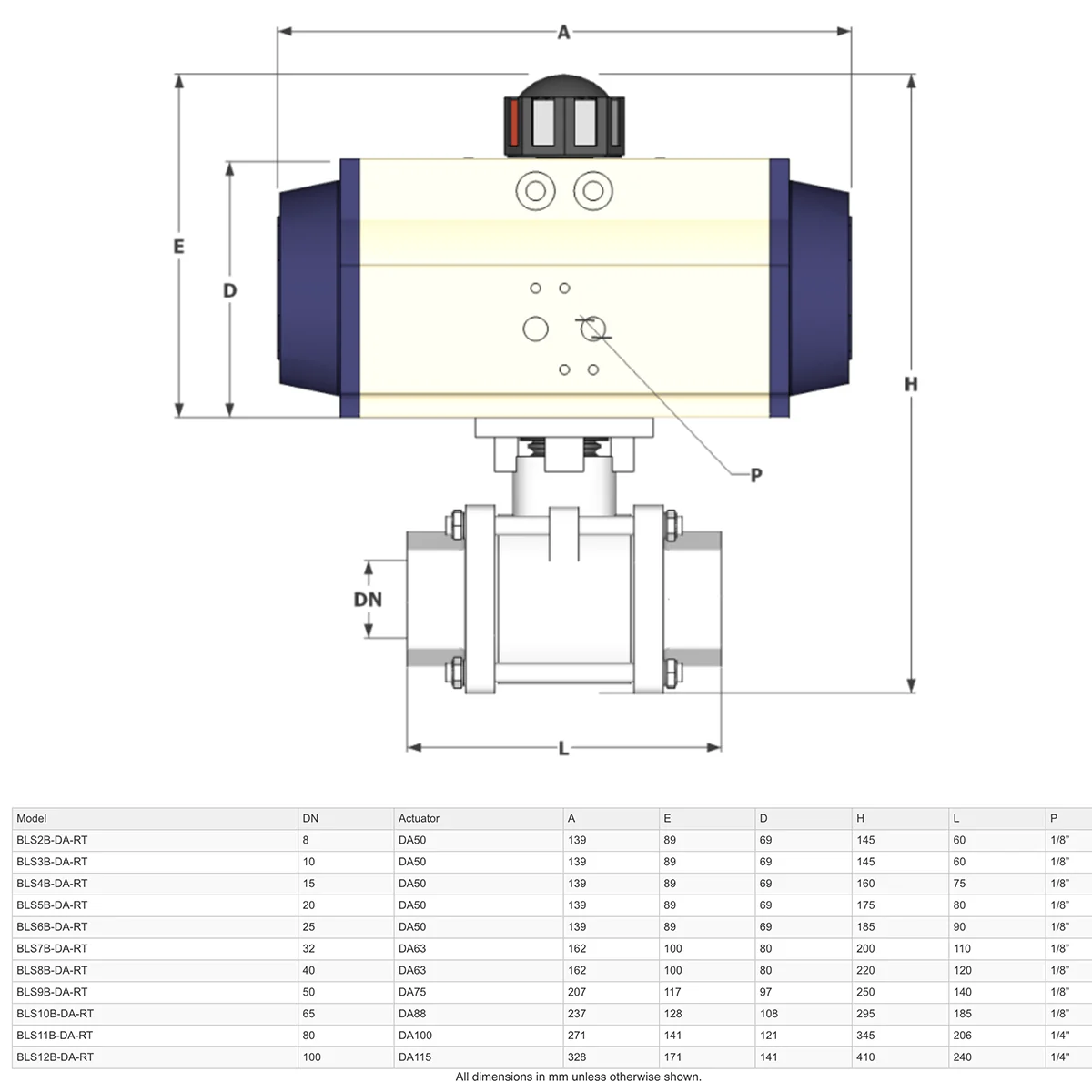

GO Ball Valves Actuated Double Acting Pneumatic 316 Stainless 3 Piece Full Bore BLSDA - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

A high performance 3 piece full bore 316 Stainless Steel ball valve with BSP threaded connections and a double acting pneumatic actuator. It has a self adjusting stem packing assembly with a Belleville spring for temperature fluctuations and vibration, and a pre drilled metric hole on the ISO5211 direct mounting pad to minimise thermal transfer from valve to actuator. Reinforced PTFE seats allow temperatures up to 180°C. The anodised aluminium actuator provides double acting operation. Typical applications include water treatment, chemical, marine, petrochemical and general industry.
