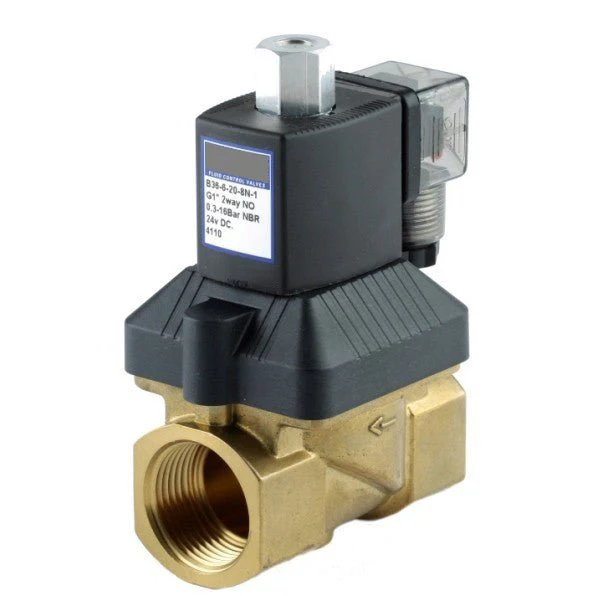

GO B36 Brass General Purpose Differential Normally Open Solenoid Valves
HomeStore

GO B36 Brass General Purpose Differential Normally Open Solenoid Valves

GO B36 Brass General Purpose Differential Normally Open Solenoid Valves

Select Size
Select Orifice
From $25.72

Original: $73.48

-65%
GO B36 Brass General Purpose Differential Normally Open Solenoid Valves—

$73.48

$25.72

The Story

The GO B36 is a brass, 2 way, 2 position normally open (power to close) differential, servo-assisted solenoid valve for air, water and other non-aggressive media up to 40 centistoke viscosity. An anti water hammer diaphragm gives a slow close, which suits mains water applications or installation downstream of a pump or compressor.

The range covers 1/4 inch to 2 inch BSP with orifice sizes from 14mm to 50mm, a 0.3 to 16 BAR pressure range and a -10°C to 80°C media temperature. It comes with a coil (Class H insulation) and a DIN plug (IP65 protection), is available in all voltages and is 100% ED rated for continuous operation. A matching repair kit is available for the range.

GO B36 Brass General Purpose Differential Normally Open Solenoid Valves - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The GO B36 is a brass, 2 way, 2 position normally open (power to close) differential, servo-assisted solenoid valve for air, water and other non-aggressive media up to 40 centistoke viscosity. An anti water hammer diaphragm gives a slow close, which suits mains water applications or installation downstream of a pump or compressor.

The range covers 1/4 inch to 2 inch BSP with orifice sizes from 14mm to 50mm, a 0.3 to 16 BAR pressure range and a -10°C to 80°C media temperature. It comes with a coil (Class H insulation) and a DIN plug (IP65 protection), is available in all voltages and is 100% ED rated for continuous operation. A matching repair kit is available for the range.
